Executive Summary: The decision between field-bending conduit and installing prefabricated factory elbows is the single biggest factor governing material budgets and labor hours on commercial electrical jobs.

• Trade Sizes 1/2″ to 1″: Field bending is the universal industry standard. A skilled electrician can bend a 90-degree stub in under 60 seconds with a standard hand bender, saving 50% to 70% in fitting costs while eliminating internal coupling snags.
• Trade Sizes 2-1/2″ to 4″: Factory elbows dominate field runs unless the contractor owns an electric or hydraulic bender on a dedicated prefabrication cart.
• Wire Pulling Advantage: Field bending produces continuous, unbroken pipe without internal coupling ridges, significantly reducing cable pulling friction and preventing wire insulation damage.
• Code Compliance (NEC Chapter 9 Table 2): Factory elbows guarantee listed minimum bend radii, whereas field bends risk code failure if kinked, flattened, or bent too sharply.

Master Comparison Matrix: Field Bending vs. Factory Elbows

The table below breaks down the technical, financial, and operational differences between custom field fabrication and prefabricated fittings.

The Physics of Wire Pulling: Friction & Sidewall Pressure

The most overlooked engineering reason to choose field bending over factory elbows involves cable pulling physics:

1. The Internal Coupling Ridge Problem

Every factory elbow introduces two additional couplings into the raceway system:

• When heavy feeder conductors (such as 350 MCM or 500 MCM copper) are pulled around a bend under thousands of pounds of mechanical pulling tension, the conductor leading head presses firmly against the inside wall.
• In prefabricated runs, the pulling head must jump over the internal stop ridges of both couplings. If fittings are slightly misaligned or set screws are overtightened, these sharp internal edges can shave cable insulation, causing immediate ground faults during high-voltage hipot testing.
• Continuous field-bent conduit eliminates all internal joints, creating a smooth, glassy slide path.

2. Sidewall Bearing Pressure (SWBP) on Large Feeders

When pulling large multi-conductor cables around a 90-degree elbow, the cable experiences radial crushing force directed toward the inner radius of the bend. This is known as Sidewall Bearing Pressure:

SWBP = Tension / Inside Radius of Bend

Under industry cable standards (IEEE and ICEA), maximum allowable SWBP on standard commercial THHN/THWN conductors is 500 pounds per foot of radius.

• Standard factory elbows have tight radii (e.g., a standard 3-inch factory elbow has a radius of approximately 13 inches).
• Under heavy pulling tension, standard factory elbows can exceed 500 lbs/ft of crushing force, permanently deforming conductor insulation.

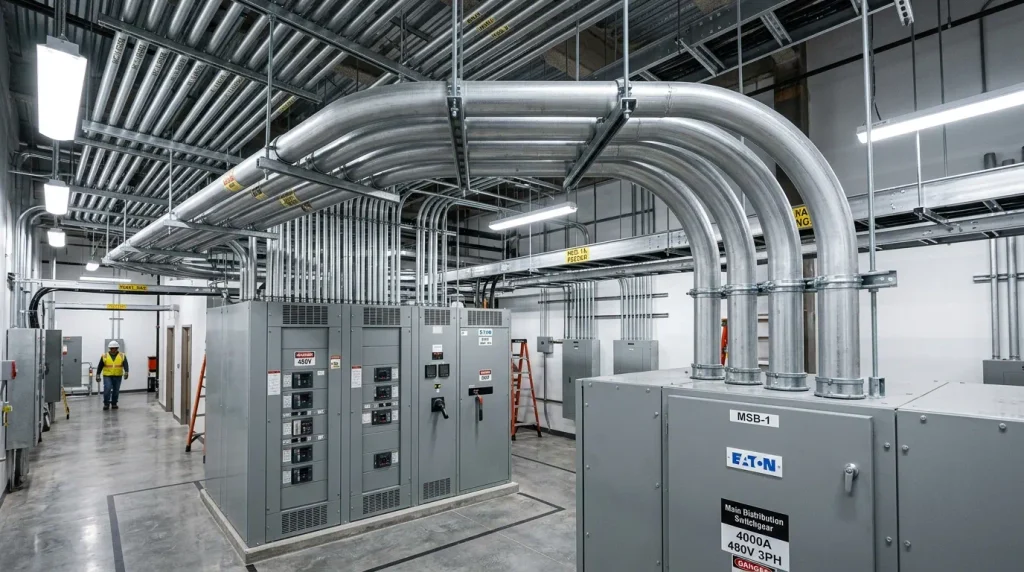

• Skilled electrical contractors field-bend large sweep elbows (24″, 36″, or 48″ radius) or special-order large factory sweeps to distribute radial force safely across long feeder runs. Review our conduit jam ratio calculation guide to verify cable clearances.

Cost Comparison: The Material vs. Labor Economics

Let us analyze a real-world commercial tenant fit-out requiring 60 ninety-degree bends in 3/4-inch EMT conduit:

Option A: Prefabricated Factory Elbows

• 60 factory 90-degree elbows at $5.50each:\ast \ast$5.50each:∗∗330.00**
• 120 EMT set-screw couplings at $0.85each:\ast \ast$0.85each:∗∗102.00**
• Total Material Cost: $432.00
• Labor (NECA Manual of Labor Units): Installing 60 factory elbows with 120 couplings requires measuring, cutting short straight nipples, reaming, and tightening 240 set screws. Estimated labor: 7.5 journeyman hours (600.00at600.00at80/hr).
• Total Installed Cost: $1,032.00

Option B: Field Bending with a Hand Bender

• 60 field bends formed on continuous 10-foot conduit sticks: $0.00 in fittings
• Zero extra couplings required: $0.00
• Total Material Cost: $0.00
• Labor (NECA Manual of Labor Units): A journeyman electrician takes approximately 60 seconds to measure, mark, and bend a 3/4″ 90-degree stub. Estimated labor for 60 bends: 1.5 journeyman hours (120.00at120.00at80/hr).
• Hand bender tool cost (one-time purchase): $65.00.
• Total Installed Cost: $185.00

TIP

The Bottom Line: On small branch circuits (1/2″ and 3/4″), field bending saves over 80% in combined material and labor costs while delivering a cleaner, more professional installation.

NEC Code Rules for Bends: Article 358 & Chapter 9 Table 2

All conduit bends must comply with National Electrical Code mandates:

1. The 360-Degree Bend Limit (NEC 358.26 & 344.26): The total degrees of all bends between pull points (junction boxes, conduit bodies, or panels) cannot exceed 360 degrees (equivalent to four 90-degree bends). Both field bends and factory elbows count equally toward this total. Review our complete 360-degree conduit bend limit guide for pull calculations.
2. Minimum Radius Standards (NEC Chapter 9 Table 2): Bends must be made so that the conduit is not damaged and the internal diameter is not effectively reduced. Minimum centerline bend radii for standard factory and field one-shot shoes are:
   • 1/2″ Conduit: 4.0 inches
   • 3/4″ Conduit: 4.5 inches
   • 1″ Conduit: 5.75 inches
   • 1-1/4″ Conduit: 7.25 inches
   • 1-1/2″ Conduit: 8.25 inches
   • 2″ Conduit: 9.5 inches
   • 3″ Conduit: 13.0 inches
   • 4″ Conduit: 16.0 inches
3. Short Run Exception (The 24-Inch Nipple Rule): If an elbow is part of an enclosure-to-enclosure connection 24 inches or less in length, take advantage of the 24-inch nipple 60 percent fill rule to install more conductors.

PVC Field Bending: The Heating Blanket Penalty

In PVC conduit installations (Article 352), field bending dynamics are fundamentally different from metal:

• The Hot Box Requirement: Rigid PVC cannot be cold-bent with mechanical benders. Electricians must rotate the pipe inside an electric infrared “hot box” or wrap it in a heating blanket until the plastic softens into a pliable state.
• Labor Delays: Softening a 2-inch PVC stick takes 4 to 8 minutes. In winter cold, field-heating PVC is frustratingly slow, and uneven heating leads to wall pinching and wrinkling.
• The Contractor Rule for PVC: Unless an underground trench requires a gentle custom curve, smart contractors almost always purchase prefabricated PVC factory elbows to avoid job-site heating bottlenecks.
