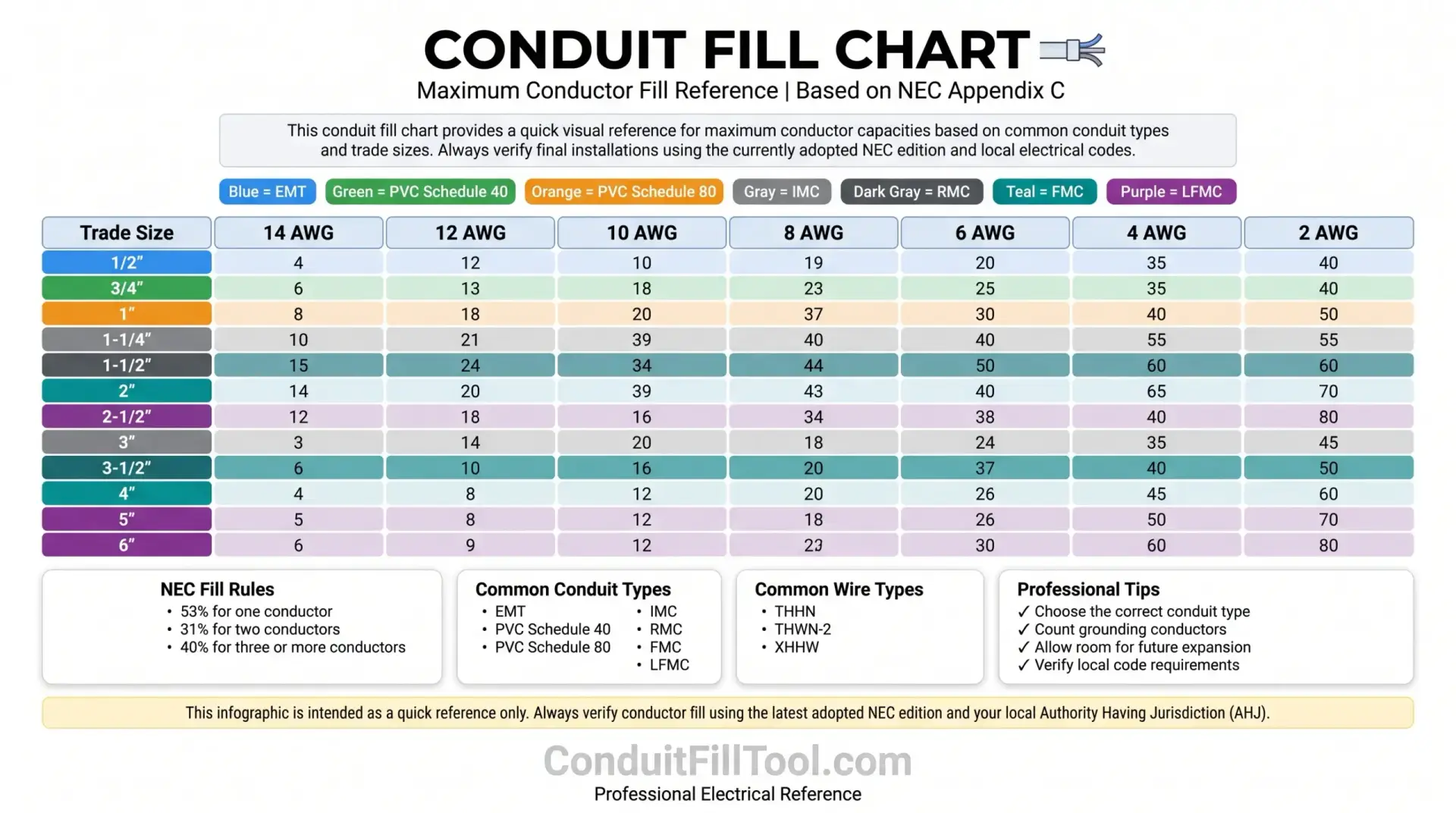

Conduit Fill Chart
A conduit fill chart is an essential electrical reference tool used by electricians, inspectors, and electrical engineers to determine the maximum number of insulated conductors that can safely occupy a conduit or tubing raceway. Electrical raceways serve as protective enclosures for power and control wiring, but pulling too many conductors into a single pipe creates severe safety risks.
The National Electrical Code (NEC) publishes official conduit fill limits in Appendix C to protect conductor insulation during wire pulling and ensure proper heat dissipation during operation. When current flows through electrical wires, heat is generated. If conductors are packed too tightly without adequate surrounding air space, heat accumulates, causing insulation breakdown, voltage drops, and potential electrical fire hazards. Furthermore, overfilling conduits dramatically increases pulling tension, leading to torn outer jackets and dangerous short circuits.
Compliance with NEC conduit fill tables ensures that conductors can be installed smoothly without exceeding maximum sidewall pressure or fill percentages. While a conduit fill chart provides quick single-gauge lookups for standard runs, complex installations involving multiple wire sizes or ground wires require precise calculations. Electricians frequently rely on the Conduit Fill Calculator to calculate exact raceway fill percentages and verify code compliance in seconds.
How to Use This Conduit Fill Chart
Follow these four simple steps to look up maximum allowable conductor counts for your electrical raceway installation:
Note: This chart assumes all conductors in the raceway are of identical size and insulation type. If your installation combines different wire gauges, uninsulated grounds, or compact cables, perform a detailed mathematical area calculation instead of a single-gauge chart lookup.

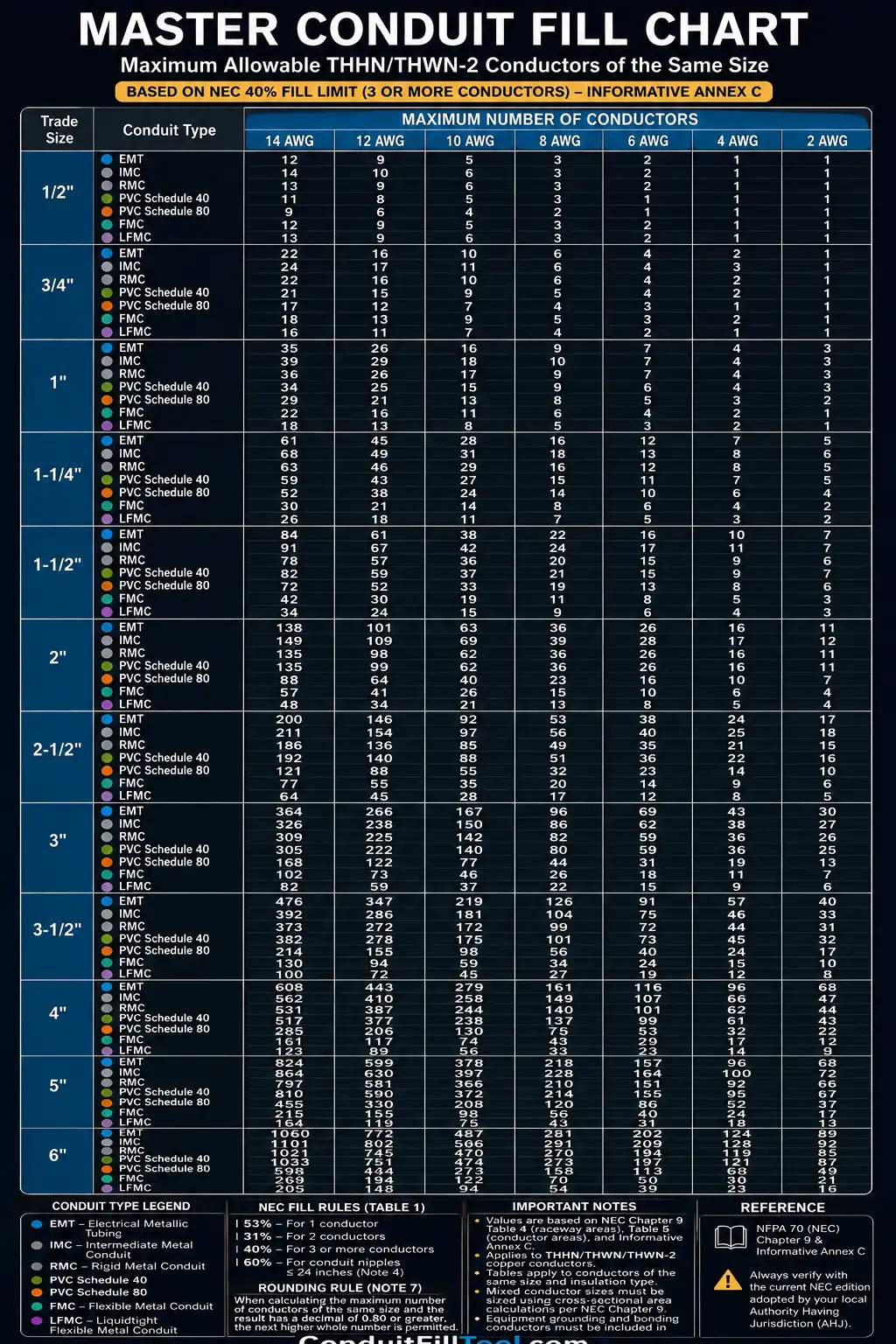

EMT Conduit Fill Chart
Electrical Metallic Tubing (EMT) is a smooth, thin-wall galvanized steel raceway widely used in commercial and residential interior wiring. Electricians refer to this chart to find the maximum allowed THHN/THWN-2 conductors based on NEC Appendix C Table C1 fill limits.
Understanding NEC Conduit Fill Rules & Calculations
Properly sizing electrical conduits is one of the most critical aspects of code-compliant electrical design. The National Electrical Code (NEC) governs raceway installations to prevent structural damage to building assemblies, maintain thermal safety, and protect electrical conductors during pulling operations.
Key Technical Parameters Defined
- Trade Size: The standard commercial designation for conduit outer dimensions (e.g., 1/2", 3/4", 1", 2", 4"). Trade size does not reflect exact internal diameter due to varying wall thicknesses across materials.
- Wire Gauge (AWG & kcmil): The standardized measure of conductor cross-sectional diameter. As American Wire Gauge (AWG) numbers decrease, conductor diameter increases. Larger feeder conductors are measured in thousand circular mils (kcmil).
- Conductor Count: The total number of current-carrying and grounding conductors installed in a single continuous raceway run.
- Internal Conduit Area: The total interior cross-sectional square-inch area ($in^2$) available for wire routing. Internal area varies significantly between thin-wall tubing like EMT and heavy-wall pipes like Schedule 80 PVC.
NEC Fill Percentage Rules (Chapter 9, Table 1)
The NEC specifies strict maximum fill limits based on the total number of conductors installed:
- 1 Conductor (53% Max Fill): Applied to single-conductor runs, such as service entrance cables or grounding electrode conductors, where jamming risk is minimal.
- 2 Conductors (31% Max Fill): Applied when pulling exactly two conductors. The 31% limit accounts for ovaling and side-by-side jamming risks during wire pulls.
- 3 or More Conductors (40% Max Fill): The standard maximum fill limit for almost all multi-wire branch circuits and feeder installations. Reserving 60% free air space ensures sufficient ventilation and prevents thermal insulation breakdown.
- Nipple Runs $\le$ 24 Inches (60% Max Fill): Short conduit nipples 24 inches or less in length between enclosures are permitted a 60% fill limit because pulling friction and heat buildup are significantly reduced over short distances.
Common Installation Mistakes to Avoid
- Ignoring Ground Wires: Equipment grounding conductors (EGCs) occupy internal raceway area and must always be counted toward maximum fill limits.
- Confusing Schedule 40 and Schedule 80 PVC: Schedule 80 PVC has a significantly thicker wall than Schedule 40. Using Schedule 40 fill limits for Schedule 80 installations leads to illegal overfilling.
- Failing to Upsize for Long Bends: Conduits containing multiple $90^\circ$ bends experience extreme sidewall pressure during wire pulls. Upsizing conduit trade size beyond minimum NEC requirements reduces pull tension and protects wire jackets.
