Quick Summary: Under the National Electrical Code (NEC Article 358 and Annex C Table C.1), the maximum number of conductors permitted in Electrical Metallic Tubing (EMT) depends on the cross-sectional area of the wire and the conduit trade size. When pulling three or more conductors of the same size and insulation type (THHN/THWN-2), the standard capacities are:
- 1/2″ EMT: 12 wires of 14 AWG | 9 wires of 12 AWG | 5 wires of 10 AWG | 2 wires of 6 AWG
- 3/4″ EMT: 22 wires of 14 AWG | 16 wires of 12 AWG | 10 wires of 10 AWG | 4 wires of 6 AWG
- 1″ EMT: 35 wires of 14 AWG | 26 wires of 12 AWG | 16 wires of 10 AWG | 6 wires of 6 AWG
- 1-1/4″ EMT: 61 wires of 14 AWG | 45 wires of 12 AWG | 28 wires of 10 AWG | 11 wires of 6 AWG
Key Takeaways

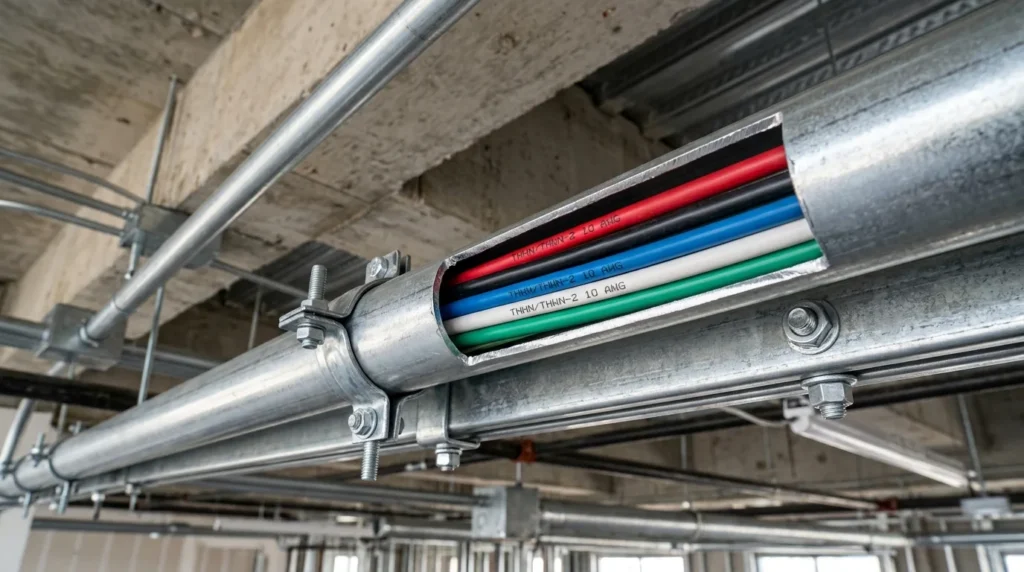

NEC EMT Conduit Fill Limits At-A-Glance
Chapter 9, Table 1 Maximum Allowable Cross-Sectional Fill
- The 40 Percent Standard (NEC Chapter 9 Table 1): For runs containing three or more conductors, total wire cross-sectional area cannot exceed 40% of the EMT conduit interior area.
- One and Two Conductor Limits: Single-conductor pulls are permitted up to 53% fill, while two-conductor pulls are strictly limited to 31% fill to prevent severe binding during installation.
- 24-Inch Nipple Exemption (NEC Note 4): Conduit sleeves and nipples 24 inches or less in length are permitted up to 60% fill capacity and are exempt from ampacity adjustment derating.
- Grounding Conductors Always Count: Every conductor inside the raceway, including bare or insulated equipment grounding wires, must be included in the total fill calculation.
Master EMT Conduit Fill Chart (NEC Annex C Table C.1)
The table below provides the maximum allowable number of conductors for compact copper THHN/THWN-2 conductors inside Electrical Metallic Tubing (EMT) from 1/2 inch to 4 inches based on NEC Chapter 9 Table 4 (40% fill limit for 3 or more wires).
| Conductor Size (AWG/kcmil) | Wire Area (sq. in.) | 1/2″ EMT (0.122 sq. in.) | 3/4″ EMT (0.213 sq. in.) | 1″ EMT (0.346 sq. in.) | 1-1/4″ EMT (0.598 sq. in.) | 1-1/2″ EMT (0.814 sq. in.) | 2″ EMT (1.342 sq. in.) | 2-1/2″ EMT (2.138 sq. in.) | 3″ EMT (3.000 sq. in.) | 3-1/2″ EMT (3.997 sq. in.) | 4″ EMT (5.024 sq. in.) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 AWG THHN | 0.0097 | 12 | 22 | 35 | 61 | 84 | 138 | 220 | 309 | 412 | 517 |
| 12 AWG THHN | 0.0133 | 9 | 16 | 26 | 45 | 61 | 101 | 160 | 225 | 300 | 377 |
| 10 AWG THHN | 0.0211 | 5 | 10 | 16 | 28 | 38 | 63 | 101 | 142 | 189 | 238 |
| 8 AWG THHN | 0.0366 | 3 | 5 | 9 | 16 | 22 | 36 | 58 | 81 | 109 | 137 |
| 6 AWG THHN | 0.0507 | 2 | 4 | 6 | 11 | 16 | 26 | 42 | 59 | 78 | 99 |
| 4 AWG THHN | 0.0824 | 1 | 2 | 4 | 7 | 9 | 16 | 25 | 36 | 48 | 60 |
| 3 AWG THHN | 0.0973 | 1 | 2 | 3 | 6 | 8 | 13 | 22 | 30 | 41 | 51 |
| 2 AWG THHN | 0.1159 | 1 | 1 | 2 | 5 | 7 | 11 | 18 | 25 | 34 | 43 |
| 1 AWG THHN | 0.1339 | 0 | 1 | 2 | 4 | 6 | 10 | 15 | 22 | 29 | 37 |
| 1/0 AWG THHN | 0.1562 | 0 | 1 | 2 | 3 | 5 | 8 | 13 | 19 | 25 | 32 |
| 2/0 AWG THHN | 0.1863 | 0 | 0 | 1 | 3 | 4 | 7 | 11 | 16 | 21 | 26 |
| 3/0 AWG THHN | 0.2223 | 0 | 0 | 1 | 2 | 3 | 6 | 9 | 13 | 17 | 22 |
| 4/0 AWG THHN | 0.2679 | 0 | 0 | 0 | 2 | 3 | 5 | 7 | 11 | 14 | 18 |
| 250 kcmil (MCM) | 0.3970 | 0 | 0 | 0 | 1 | 2 | 3 | 5 | 7 | 10 | 12 |
| 300 kcmil (MCM) | 0.4608 | 0 | 0 | 0 | 0 | 1 | 2 | 4 | 6 | 8 | 10 |
| 350 kcmil (MCM) | 0.5242 | 0 | 0 | 0 | 0 | 1 | 2 | 4 | 5 | 7 | 9 |
| 400 kcmil (MCM) | 0.5863 | 0 | 0 | 0 | 0 | 1 | 2 | 3 | 5 | 6 | 8 |
| 500 kcmil (MCM) | 0.7073 | 0 | 0 | 0 | 0 | 0 | 1 | 3 | 4 | 5 | 7 |
[!PRO TIP] Interactive Live Sizing: If you are mixing different wire sizes, adding ground conductors, or installing thicker XHHW-2 insulation, calculate exact multi-gauge totals with our Interactive Conduit Fill Calculator.
EMT Internal Dimensions and Area Reference (NEC Table 4)
Electrical Metallic Tubing is manufactured with thin steel walls compared to Rigid Metal Conduit (RMC). The table below outlines the total internal area and legal fill limits for all standard trade sizes.
| EMT Trade Size | Internal Diameter (in.) | Total Internal Area (100%) | 1 Wire (53% Fill Limit) | 2 Wires (31% Fill Limit) | 3+ Wires (40% Fill Limit) | 24″ Nipple (60% Fill Limit) |
|---|---|---|---|---|---|---|
| 1/2″ | 0.622 in. | 0.304 sq. in. | 0.161 sq. in. | 0.094 sq. in. | 0.122 sq. in. | 0.182 sq. in. |
| 3/4″ | 0.824 in. | 0.533 sq. in. | 0.283 sq. in. | 0.165 sq. in. | 0.213 sq. in. | 0.320 sq. in. |
| 1″ | 1.049 in. | 0.864 sq. in. | 0.458 sq. in. | 0.268 sq. in. | 0.346 sq. in. | 0.518 sq. in. |
| 1-1/4″ | 1.380 in. | 1.496 sq. in. | 0.793 sq. in. | 0.464 sq. in. | 0.598 sq. in. | 0.898 sq. in. |
| 1-1/2″ | 1.610 in. | 2.036 sq. in. | 1.079 sq. in. | 0.631 sq. in. | 0.814 sq. in. | 1.222 sq. in. |
| 2″ | 2.067 in. | 3.356 sq. in. | 1.779 sq. in. | 1.040 sq. in. | 1.342 sq. in. | 2.014 sq. in. |
| 2-1/2″ | 2.731 in. | 5.346 sq. in. | 2.833 sq. in. | 1.657 sq. in. | 2.138 sq. in. | 3.208 sq. in. |
| 3″ | 3.090 in. | 7.499 sq. in. | 3.974 sq. in. | 2.325 sq. in. | 3.000 sq. in. | 4.499 sq. in. |
| 3-1/2″ | 3.570 in. | 9.992 sq. in. | 5.296 sq. in. | 3.098 sq. in. | 3.997 sq. in. | 5.995 sq. in. |
| 4″ | 4.000 in. | 12.560 sq. in. | 6.657 sq. in. | 3.894 sq. in. | 5.024 sq. in. | 7.536 sq. in. |
How to Calculate EMT Conduit Fill in 3 Simple Steps
Calculating conduit fill for combinations of different wire gauges is straightforward when using the cross-sectional areas from NEC Chapter 9 Table 5:
- Calculate Total Conductor Area: Multiply the cross-sectional area of each conductor by the number of wires in that group, then sum all values together.
- Determine Allowable Conduit Area: Identify the conduit trade size and find its allowable 40% area from NEC Chapter 9 Table 4.
- Verify Compliance: Ensure the total conductor area is less than or equal to the allowable 40% area of the selected EMT conduit.
Practical Calculation Example (Mixed Wire Pull):
Suppose you are pulling the following conductors through an EMT conduit:
- Six 12 AWG THHN conductors: 6 x 0.0133 sq. in. = 0.0798 sq. in.
- Three 10 AWG THHN conductors: 3 x 0.0211 sq. in. = 0.0633 sq. in.
- One 10 AWG Ground wire: 1 x 0.0211 sq. in. = 0.0211 sq. in.
- Total Wire Area = 0.1642 square inches.
Comparing against EMT conduit fill capacities:
- 1/2″ EMT Allowable Area: 0.122 sq. in. (0.1642 sq. in. exceeds capacity, 1/2″ EMT Fails).
- 3/4″ EMT Allowable Area: 0.213 sq. in. (0.1642 sq. in. fits at 77% of allowable limit, 3/4″ EMT Passes).
Important NEC Installation Rules for EMT Conduit
When designing and pulling conductors through Electrical Metallic Tubing, keep these code requirements in mind:
- Ampacity Derating for More Than 3 Conductors (NEC 310.15(C)(1)): While you can legally fit sixteen 12 AWG wires into 3/4″ EMT, putting more than three current-carrying conductors in one raceway requires derating the wire ampacity (e.g., 4 to 6 conductors derates to 80%, 7 to 9 conductors derates to 70%, and 10 to 20 conductors derates to 50%).
- Preventing Cable Jam (The Jam Ratio): When pulling exactly three conductors through a raceway, check the conduit jam ratio calculation guide to ensure the conduit inside diameter divided by wire outside diameter is not between 2.8 and 3.2.
- Total Bend Limits Between Pull Points (NEC 358.26): You cannot exceed a total of four quarter bends (360 degrees of bends) between junction boxes or pull points. Learn more in our 360-degree conduit bend limit guide.
- Short Nipple Runs (NEC Chapter 9 Note 4): When running a short conduit sleeve 24 inches or less between two panels, you are allowed up to 60% fill capacity. Review our 24-inch nipple 60 percent rule guide.
Frequently Asked Questions (FAQs)
Under NEC Annex C Table C.1, you can install up to 9 conductors of 12 AWG THHN in 1/2-inch EMT conduit under the 40% fill limit.
You can install up to 10 conductors of 10 AWG THHN in 3/4-inch EMT conduit.
Three 6 AWG wires (3 x 0.0507 = 0.1521 sq. in.) plus one 10 AWG ground (0.0211 sq. in.) equals 0.1732 sq. in., which requires a minimum 3/4-inch EMT conduit (0.213 sq. in. capacity).
Yes. Under NEC Chapter 9 Note 3, all conductors inside the raceway, whether insulated or bare, must be included in the total conduit fill calculation.
