If you’ve ever worked with conduit, you’ve probably heard about the NEC 40% conduit fill rule. At first, the number may seem random. Why not 50% or even 100%? The answer is simple. The National Electrical Code (NEC) limits conduit fill to help protect conductors, make installations easier, and improve long-term safety.
Whether you are an electrician, apprentice, contractor, or DIY enthusiast, understanding the reason behind this rule helps you make better installation decisions. It also helps you avoid failed inspections and expensive rework.
If you need to calculate conduit fill for your project, using an online Conduit Fill Calculator is much faster and more accurate than doing the math by hand.
What Is the NEC 40% Conduit Fill Rule?
Conduit fill is the amount of space that electrical conductors occupy inside a conduit. Instead of counting the number of wires alone, the NEC measures the total cross-sectional area of all conductors compared to the inside area of the conduit.
The National Electrical Code sets maximum fill percentages based on how many conductors are inside the raceway.
- One conductor: 53%
- Two conductors: 31%
- Three or more conductors: 40%
These limits are found in NEC Chapter 9, Table 1 and apply to most conduit installations. They help ensure conductors can be installed safely without creating unnecessary stress or heat.
If you are new to these requirements, our guide on NEC Conduit Fill Rules Explained provides a simple overview before you begin calculating conduit sizes.

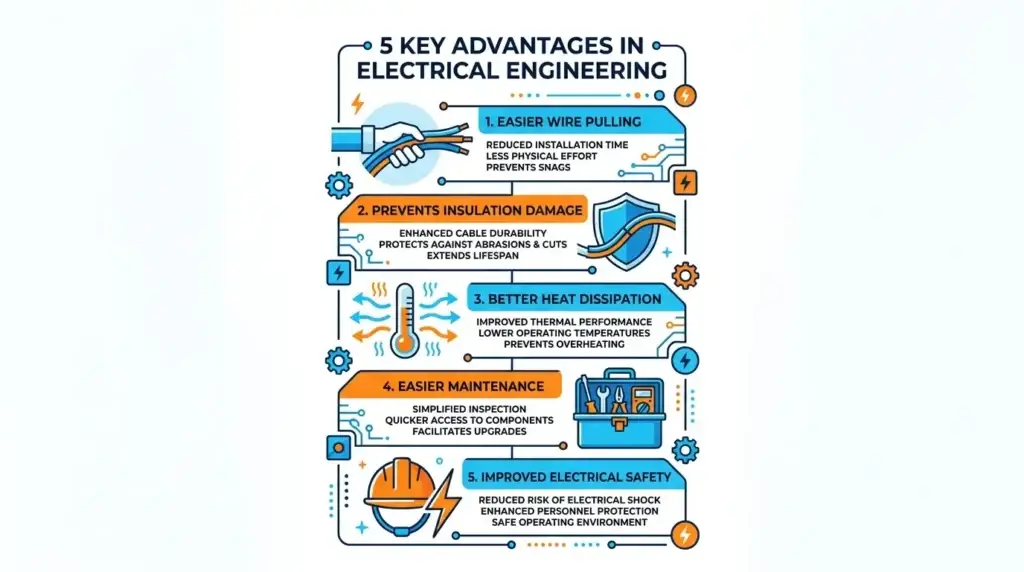

Why Does the NEC Limit Conduit Fill to 40%?
The 40% limit is not an arbitrary number. It is based on practical installation experience and engineering principles. The rule balances safety, performance, and ease of installation.
Easier Wire Pulling
One of the biggest reasons for the 40% limit is to make pulling wires through conduit easier.
When a conduit is packed too tightly, friction increases. More friction means electricians need greater pulling force to install the conductors. This increases labor time and raises the chance of damaging the wire insulation.
Leaving about 60% of the conduit empty provides enough room for conductors to move through bends more smoothly. Lubricants also work better when there is sufficient space inside the raceway.
Prevents Damage to Wire Insulation
Electrical insulation protects conductors from short circuits and electrical faults.
When too many wires are forced into a conduit, the insulation can scrape against other conductors or the conduit wall. Even small cuts or abrasions can reduce insulation life.
Keeping conduit fill within NEC limits helps protect conductor jackets during installation and reduces the chance of hidden damage that may not be discovered until years later.
Allows Better Heat Dissipation
Electrical current produces heat.
When conductors are packed tightly together, that heat becomes trapped. Higher temperatures can shorten insulation life and affect conductor performance.
The 40% fill limit leaves enough air space inside the conduit to improve heat dissipation under normal installation conditions. While conduit fill and ampacity are different calculations, both contribute to a safe electrical system.
Makes Future Maintenance Easier
Electrical systems often need modifications over time.
Additional circuits may be installed, damaged conductors may need replacement, or maintenance may require pulling existing wires out of the conduit.
If the conduit is already full, these tasks become much more difficult. The available space left by the 40% rule makes future upgrades and repairs easier and helps reduce labor costs.
Improves Overall Installation Safety
Following NEC conduit fill limits reduces several common installation problems, including:
- Excessive pulling tension
- Damaged insulation
- Difficult conductor replacement
- Crowded raceways
- Increased installation errors
These benefits help improve the overall reliability of an electrical system and make inspections more likely to pass on the first attempt.
Why Not Allow More Than 40% Fill?
Many beginners wonder why electricians cannot simply use every bit of available conduit space.
The answer is that a completely full conduit creates more problems than benefits.
Higher Pulling Force
As conduit fill increases, conductors rub against each other more often.
This creates higher pulling tension, especially when multiple bends are present. Pulling equipment must work harder, increasing installation time and the risk of damaged wires.
Increased Risk of Damaged Conductors
Conductors packed tightly together cannot move freely.
During installation, insulation may become pinched, stretched, or scraped against the conduit wall. This damage may not always be visible immediately but can reduce the life of the electrical system.
More Heat Inside the Raceway
Closely packed conductors reduce airflow.
Less available space means heat is more difficult to dissipate. Over time, excessive temperatures can shorten insulation life and affect conductor performance.
Difficult Future Modifications
Electrical systems rarely remain unchanged throughout a building’s life.
Adding one more circuit becomes much harder if the conduit was already filled beyond recommended limits. Following the 40% rule leaves room for future maintenance without replacing the entire conduit system.
Why Are Single Conductors Allowed 53% Fill?
Many people notice that one conductor is allowed to occupy up to 53% of the conduit while three or more conductors are limited to 40%.
The reason is geometry.
A single conductor sits near the center of the conduit without competing for space. There is little chance of conductors rubbing together because only one conductor is present.
This makes pulling easier while still leaving enough space around the conductor for installation and cooling.
Why Is the Limit Only 31% for Two Conductors?
The 31% rule often surprises electricians.
With only two conductors, each wire presses directly against the other. This creates a greater chance of jamming during wire pulls, especially around bends.
Because of this unique geometry, two conductors actually require a lower fill percentage than three or more conductors.
Although it may seem unusual, this limit helps reduce friction and makes installations smoother. (FieldDojo)
Does the 40% Rule Affect Ampacity?
This is one of the most common misunderstandings.
Conduit fill and ampacity are related but they are not the same thing.
Conduit fill determines how much physical space conductors occupy inside a raceway.
Ampacity determines how much electrical current those conductors can safely carry.
A conduit installation may satisfy the 40% fill rule but still require ampacity adjustments if enough current-carrying conductors are installed together.
Always calculate both values before completing an installation.
Are There Any Exceptions to the 40% Rule?
Yes.
The NEC includes special situations where different conduit fill limits apply.
Short Conduit Nipples
A conduit nipple is a short section of conduit, typically 24 inches or less.
Because conductors travel only a short distance through the raceway, the NEC permits up to 60% conduit fill under specific conditions.
This exception should only be applied when all NEC requirements are satisfied.
Special Installation Conditions
Some installations have additional requirements based on conduit type, conductor type, environmental conditions, or local code amendments.
Always check the latest edition of the NEC and any local electrical codes before beginning work.
Common Mistakes Electricians Make
Even experienced electricians occasionally make conduit fill mistakes.
Some of the most common include:
- Confusing conduit fill with box fill calculations.
- Using conductor diameter instead of cross-sectional area.
- Forgetting that insulation type changes conductor size.
- Selecting the wrong conduit type when calculating available space.
- Estimating conduit fill instead of calculating it accurately.
- Ignoring updated NEC requirements.
Avoiding these mistakes can save time and reduce costly corrections during inspections.
If you prefer quick lookups instead of manual calculations, our Conduit Fill Chart can help you find common conduit capacities faster.
How to Calculate Conduit Fill Correctly
Calculating conduit fill is easier when you follow a simple process.
First, identify the conduit type, such as EMT, PVC Schedule 40, PVC Schedule 80, IMC, or RMC.
Next, determine the conduit trade size.
Then identify each conductor’s wire size and insulation type because insulation affects the conductor’s overall area.
Add the cross-sectional area of every conductor together.
Finally, compare that total with the maximum allowable conduit fill for your selected conduit size using NEC Chapter 9 tables.
Instead of performing every calculation manually, you can use our Conduit Fill Calculator to calculate conduit fill in seconds. It helps reduce errors, saves time, and makes choosing the correct conduit size much easier.
Conclusion
The NEC limits conduit fill to 40% because it improves installation safety, reduces pulling tension, protects wire insulation, allows better heat dissipation, and makes future maintenance much easier. Although the percentage may seem conservative, decades of field experience have shown that overcrowded conduits create unnecessary problems and increase the risk of installation damage.
Understanding why the 40% rule exists is just as important as knowing the number itself. When you combine that knowledge with accurate calculations, you can install electrical systems that are safer, easier to maintain, and more likely to pass inspection.
Whenever you plan a conduit installation, avoid guessing. Use a reliable conduit fill calculator, follow NEC Chapter 9 requirements, and verify your results before pulling conductors. Your installation will be safer, faster, and fully code compliant.
