Schedule 80 PVC Conduit Fill Chart & Guide (NEC)

Featured Image Details

IMPORTANT
Quick Summary: Under the National Electrical Code (NEC Article 352 and Annex C Table C.9), Schedule 80 Rigid PVC Conduit is manufactured with significantly thicker walls to withstand severe physical impacts. Because the wall is thicker, the internal diameter is smaller, which reduces the total number of wires permitted compared to Schedule 40 PVC. For copper THHN/THWN-2 conductors (3 or more wires at 40% fill), the standard capacities are:
1/2″ Schedule 80 PVC: 8 wires of 14 AWG | 6 wires of 12 AWG | 3 wires of 10 AWG | 1 wire of 6 AWG
3/4″ Schedule 80 PVC: 17 wires of 14 AWG | 12 wires of 12 AWG | 7 wires of 10 AWG | 3 wires of 6 AWG
1″ Schedule 80 PVC: 29 wires of 14 AWG | 21 wires of 12 AWG | 13 wires of 10 AWG | 5 wires of 6 AWG
1-1/4″ Schedule 80 PVC: 51 wires of 14 AWG | 37 wires of 12 AWG | 23 wires of 10 AWG | 9 wires of 6 AWG

Key Takeaways

The Heavy-Wall Tradeoff: Schedule 80 PVC provides superior impact resistance for utility risers and driveways, but its internal cross-sectional area is 15% to 25% smaller than Schedule 40 PVC.
The 40 Percent Standard (NEC Chapter 9 Table 1): For runs containing three or more conductors, total wire cross-sectional area cannot exceed 40% of the Schedule 80 PVC conduit interior area.
Mandatory Physical Damage Protection (NEC 352.10(F)): Where PVC conduit is exposed to physical damage (such as commercial loading docks, parking lot bollards, and exposed service risers on building exteriors), Schedule 80 PVC is legally required.
Frequent Need to Upsize: Multi-conductor circuits that easily fit inside a 1-inch Schedule 40 pipe (such as an 80A subpanel feeder) often exceed the 40% limit in Schedule 80, requiring an immediate upsize to 1-1/4-inch Schedule 80 PVC.

! NEC Article 352.10(F) Physical Damage Rule

Schedule 80 PVC is required whenever conduit is exposed to vehicle traffic, utility pole drops, or mechanical equipment damage. Always calculate conduit fill using NEC Table C.9 rather than Table C.10 to prevent overfilling the smaller internal diameter.

Master Schedule 80 PVC Conduit Fill Chart (NEC Annex C Table C.9)

The table below provides the maximum allowable number of conductors for compact copper THHN/THWN-2 conductors inside Schedule 80 Rigid PVC Conduit from 1/2 inch to 4 inches based on NEC Chapter 9 Table 4 (40% fill limit for 3 or more wires).

Conductor Size (AWG/kcmil)	Wire Area (sq. in.)	1/2″ Sch 80 (0.081 sq. in.)	3/4″ Sch 80 (0.164 sq. in.)	1″ Sch 80 (0.279 sq. in.)	1-1/4″ Sch 80 (0.494 sq. in.)	1-1/2″ Sch 80 (0.682 sq. in.)	2″ Sch 80 (1.150 sq. in.)	2-1/2″ Sch 80 (1.648 sq. in.)	3″ Sch 80 (2.560 sq. in.)	3-1/2″ Sch 80 (3.454 sq. in.)	4″ Sch 80 (4.428 sq. in.)
14 AWG THHN	0.0097	8	17	29	51	70	118	170	264	356	456
12 AWG THHN	0.0133	6	12	21	37	51	86	124	192	260	333
10 AWG THHN	0.0211	3	7	13	23	32	54	78	121	164	210
8 AWG THHN	0.0366	2	4	7	13	18	31	45	70	94	121
6 AWG THHN	0.0507	1	3	5	9	13	22	32	50	68	87
4 AWG THHN	0.0824	0	1	3	6	8	14	20	31	42	54
3 AWG THHN	0.0973	0	1	2	5	7	11	17	26	35	45
2 AWG THHN	0.1159	0	1	2	4	5	9	14	22	30	38
1 AWG THHN	0.1339	0	0	2	3	5	8	12	19	26	33
1/0 AWG THHN	0.1562	0	0	1	3	4	7	10	16	22	28
2/0 AWG THHN	0.1863	0	0	0	2	3	6	8	13	18	23
3/0 AWG THHN	0.2223	0	0	0	2	3	5	7	11	15	20
4/0 AWG THHN	0.2679	0	0	0	1	2	4	6	9	13	16
250 kcmil (MCM)	0.3970	0	0	0	1	1	2	4	6	8	11
300 kcmil (MCM)	0.4608	0	0	0	0	0	2	3	5	7	9
350 kcmil (MCM)	0.5242	0	0	0	0	0	2	3	4	6	8
400 kcmil (MCM)	0.5863	0	0	0	0	0	1	2	4	5	7
500 kcmil (MCM)	0.7073	0	0	0	0	0	0	2	3	4	6

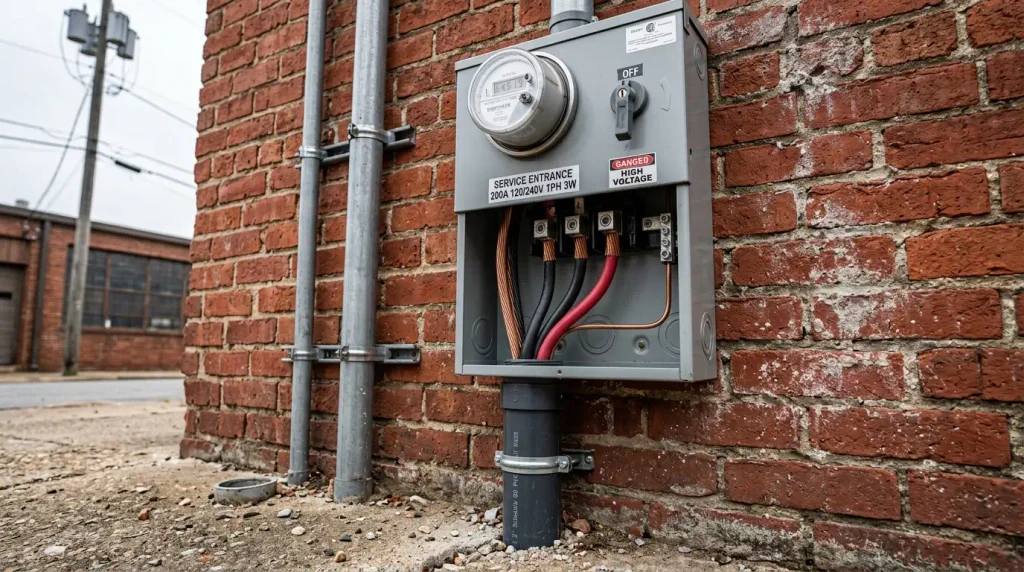

Commercial exterior service riser showing heavy-wall Schedule 80 PVC conduit protecting service entrance cables from physical impact

[!PRO TIP] Live Multi-Gauge Sizing: Pulling different wire sizes or adding an equipment grounding conductor? Calculate custom multi-conductor combinations instantly with our Interactive Conduit Fill Calculator.

Schedule 80 PVC Dimensions and Internal Area Reference (NEC Table 4)

Schedule 80 PVC features an extra-thick wall profile designed to resist impact from lawnmowers, vehicles, and construction equipment. The table below outlines internal dimensions and legal fill limits.

Sch 80 Trade Size	Internal Diameter (in.)	Total Internal Area (100%)	1 Wire (53% Fill Limit)	2 Wires (31% Fill Limit)	3+ Wires (40% Fill Limit)	24″ Nipple (60% Fill Limit)
1/2″	0.526 in.	0.203 sq. in.	0.108 sq. in.	0.063 sq. in.	0.081 sq. in.	0.122 sq. in.
3/4″	0.722 in.	0.409 sq. in.	0.217 sq. in.	0.127 sq. in.	0.164 sq. in.	0.245 sq. in.
1″	0.936 in.	0.697 sq. in.	0.369 sq. in.	0.216 sq. in.	0.279 sq. in.	0.418 sq. in.
1-1/4″	1.255 in.	1.235 sq. in.	0.655 sq. in.	0.383 sq. in.	0.494 sq. in.	0.741 sq. in.
1-1/2″	1.476 in.	1.706 sq. in.	0.904 sq. in.	0.529 sq. in.	0.682 sq. in.	1.024 sq. in.
2″	1.913 in.	2.874 sq. in.	1.523 sq. in.	0.891 sq. in.	1.150 sq. in.	1.724 sq. in.
2-1/2″	2.290 in.	4.119 sq. in.	2.183 sq. in.	1.277 sq. in.	1.648 sq. in.	2.471 sq. in.
3″	2.864 in.	6.401 sq. in.	3.393 sq. in.	1.984 sq. in.	2.560 sq. in.	3.841 sq. in.
3-1/2″	3.326 in.	8.636 sq. in.	4.577 sq. in.	2.677 sq. in.	3.454 sq. in.	5.182 sq. in.
4″	3.786 in.	11.070 sq. in.	5.867 sq. in.	3.432 sq. in.	4.428 sq. in.	6.642 sq. in.

Schedule 40 vs. Schedule 80 Usable Area Comparison (40% Limit):

3/4″ Trade Size

Sch 40: 0.213 sq. in.

Sch 80: 0.164 sq. in. (-23%)

1″ Trade Size

Sch 40: 0.346 sq. in.

Sch 80: 0.279 sq. in. (-19%)

2″ Trade Size

Sch 40: 1.342 sq. in.

Sch 80: 1.150 sq. in. (-14%)

Important NEC Installation Rules for Schedule 80 PVC

When working with heavy-wall Schedule 80 PVC conduit, keep these practical code and trade rules in mind:

Where Is Schedule 80 Required (NEC 352.10(F)): Local electrical inspectors and utility companies strictly mandate Schedule 80 PVC where conduit rises out of the ground along exterior walls, on telephone poles, inside commercial parking garages, or adjacent to driveways where vehicle collision is possible.
Transitioning from Schedule 40 to Schedule 80: A common commercial practice is to run cost-effective Schedule 40 PVC underground in the horizontal trench, and then solvent-weld a Schedule 80 PVC riser factory sweep where the pipe emerges above grade.
Solvent Cement and Primer (NEC 352.48): All Schedule 80 PVC joints must be assembled using approved PVC primer and heavy-bodied solvent cement to guarantee airtight, waterproof seals.
Bend Radius Limitations (NEC 352.26): Bending Schedule 80 PVC requires a dedicated electrical heat blanket or hot box bender to avoid kinking the extra-thick plastic walls. Maintain less than 360 degrees of total bends per our 360-degree conduit bend limit guide.

Frequently Asked Questions (FAQs)

How many 12 AWG wires can fit in 1/2 inch Schedule 80 PVC conduit?

Under NEC Annex C Table C.9, you can install up to 6 conductors of 12 AWG THHN in 1/2-inch Schedule 80 PVC conduit (compared to 8 wires in Schedule 40).

What size Schedule 80 PVC conduit is required for a 200 amp service riser?

A 200-amp service entrance feeder (two 3/0 AWG copper hots, one 1/0 AWG copper neutral, and one 6 AWG ground wire = 0.6515 sq. in.) requires a minimum 1-1/2-inch Schedule 80 PVC conduit (0.682 sq. in. capacity), though 2-inch Schedule 80 PVC is recommended for easy pulling.

Is Schedule 80 PVC required for utility pole drops?

Yes. Most electrical utility service manuals strictly mandate Schedule 80 PVC from the ground level up to 8 or 10 feet on utility poles to protect power conductors against traffic and vandalism.

Can you glue Schedule 40 fittings to Schedule 80 PVC conduit?

Yes. Schedule 40 and Schedule 80 PVC share the exact same outer diameter (OD). Standard PVC couplings, bell ends, and male adapters fit both types interchangeably.
